Choosing the wrong O-ring can lead to leaks, failure, or reduced performance. Not all O-rings are created equal—especially when it comes to materials and shapes.

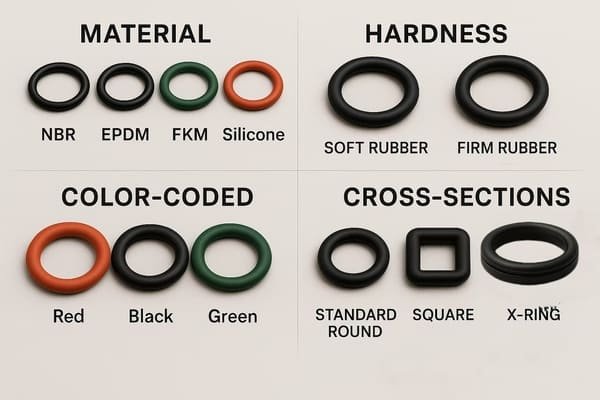

Yes, there are different types of O-rings based on material, hardness, color coding, and even cross-section shape—each designed for specific sealing environments.
Understanding the variety of O-ring types can help you choose the right seal for your application—whether it’s oil resistance, food-grade compliance, or high-temperature stability.
What Types of O-Ring Materials Are Available?
Not all rubber behaves the same.
O-rings can be made from NBR, EPDM, FKM/Viton, Silicone, HNBR, and more—each offering different chemical, temperature, and pressure performance.
🔍 Material Comparison Table:
| Material | Temp Range (°C)1 | Key Resistance2 | Common Use Cases3 |
|---|---|---|---|
| NBR (Nitrile) | -35 to +120 | Oil, fuel, abrasion | Automotive, hydraulics |
| EPDM | -50 to +150 | Steam, water, ozone | Plumbing, HVAC, outdoor systems |
| FKM (Viton) | -20 to +230 | Fuels, chemicals, high temp | Aerospace, fuel systems |
| Silicone | -60 to +200 | Flexibility, food-safe, temp | Medical, food processing |
| HNBR | -40 to +150 | Heat, oil, mechanical wear | Heavy-duty seals, compressors |
| PTFE | -200 to +250 | Chemicals, non-stick, inert | Chemical sealing, pharmaceutical |

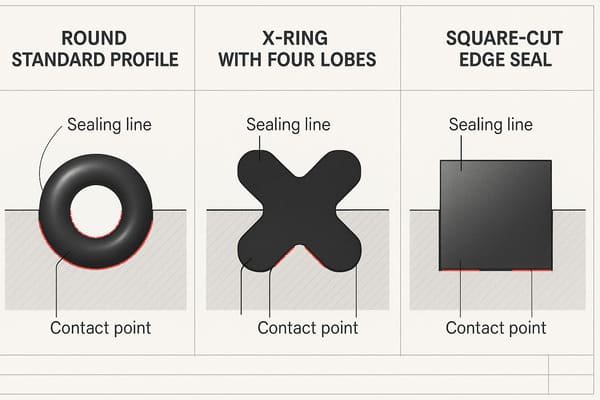

What Are the Cross-Sectional Shapes of O-Rings?
Tired of traditional round seals failing under dynamic pressure?
O-rings come in several cross-sectional shapes like round (standard), X-ring (quad ring), and square-cut, each offering unique sealing advantages.
🔺 Shape Variations:
| Type | Description | Application Benefit |
|---|---|---|
| Standard (Round)4 | Circular cross-section | Most common, basic sealing |
| X-Ring (Quad)5 | Four-lobed design | Better sealing under pressure/dynamic use |
| Square-Cut6 | Flat sides for tight compression fit | Ideal for static applications |

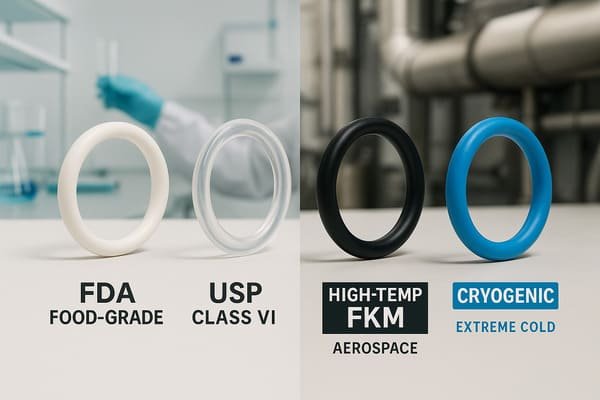

Are There O-Rings for Special Applications?
Working in food, pharma, or extreme temperatures?
Yes, there are specialty O-rings made to comply with FDA, USP Class VI, or other industry-specific certifications.
🧪 Application-Specific O-Ring Types:
- FDA Food-Grade O-Rings[^7]: Made from platinum-cured silicone or EPDM for hygiene
- High-Temp O-Rings[^8]: FKM or Silicone for oven/furnace use
- Cryogenic O-Rings[^9]: PTFE-based or perfluoroelastomers for ultra-cold sealing
- Metal Detectable O-Rings: Used in food/beverage lines to avoid contamination
- Color-Coded O-Rings: To distinguish material grade and service rating
What Are the Differences Between O-Ring Hardness Grades?
Still leaking even with the right material?
O-rings come in various hardness levels (measured in Shore A) that impact compression set, flexibility, and chemical absorption.
| Hardness | Shore A Value7 | Flexibility8 | Common Use9 |
|---|---|---|---|
| Soft | 40–50 A | High | Light duty, delicate seals |
| Medium | 60–70 A | Balanced | General sealing, dynamic use |
| Hard | 80–90 A | Low | High pressure, static joints |
Conclusion
There are many types of O-rings—by material, shape, hardness, and application. Choosing the right combination ensures leak-free performance and long service life. Whether you're sealing air, fuel, chemicals, or steam, there's an O-ring made specifically for the job.
