Engine seals face extreme heat, pressure, and aggressive fluids. Choosing the wrong O-ring can lead to oil leaks, reduced performance, and costly breakdowns.
FKM (Viton®) is the best O-ring material for engines due to its superior resistance to high temperatures, oils, fuels, and chemical additives. HNBR is also widely used where slightly lower temperature resistance is acceptable.
Let’s explore what makes a material ideal for engine use and how FKM and HNBR compare to other rubbers in sealing performance.
What Conditions Do Engine O-Rings Face?
Engines are some of the harshest environments for rubber components.
O-rings in engines must resist heat up to 230°C, withstand contact with synthetic and petroleum oils, and survive pressure fluctuations and vibrations without cracking or deforming.
✅ Engine O-Ring Challenges:
- Prolonged exposure to motor oils and additives
- Contact with fuels and combustion byproducts
- Continuous temperature cycling
- Vibration, movement, and mechanical pressure
- Long-term sealing with minimal compression set

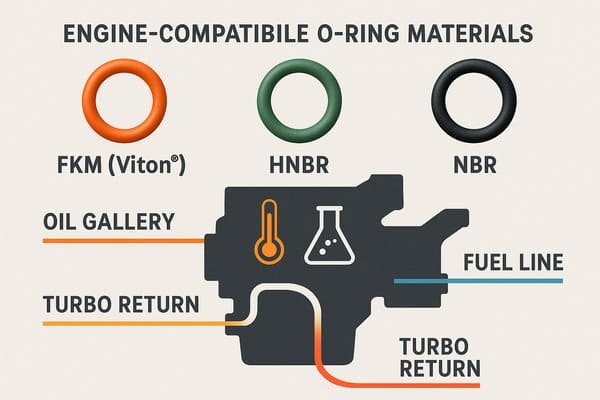

Top O-Ring Materials for Engine Seals
Here’s how common elastomers perform in engine conditions:
| Material | Temp Range (°C) | Oil/Fuel Resistance | Heat Resistance | Notes |
|---|---|---|---|---|
| ✅ FKM (Viton®)1 | -20 to +230 | Excellent ✅ | Excellent ✅ | Best overall choice for modern engines |
| ✅ HNBR2 | -40 to +150 | Excellent ✅ | Good ✅ | Tough, good for oil and coolant seals |
| ⚠️ NBR3 | -35 to +120 | Good ✅ | Moderate ⚠️ | Budget-friendly, less durable in heat |
| ❌ EPDM | -50 to +150 | Poor ❌ | Good ✅ | Not compatible with oils or fuels |
| ⚠️ Silicone | -60 to +200 | Poor ❌ | Excellent ✅ | Good for dry heat, poor in oil exposure |
Why FKM Is the Best for Engine Sealing
Looking for a material that holds up to both heat and aggressive fluids?
FKM rubber offers unmatched resistance to engine oils, fuel blends (including ethanol), high temperatures, and chemical additives.
✅ Key Benefits of FKM4 for Engines:
- Handles continuous temps up to 230°C
- Resistant to motor oil, gasoline, diesel, and ATF
- Low compression set = long-lasting seals
- Excellent aging resistance (won’t harden or crack)
- Great for dynamic or static engine components5

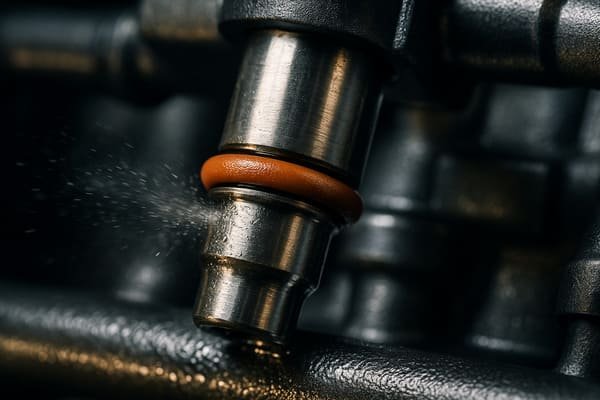

Typical Engine Applications for FKM O-Rings6:
- Crankshaft seals
- Oil cooler gaskets
- Fuel injector rings
- Turbocharger systems
- Camshaft and timing cover gaskets
When to Use HNBR Instead of FKM
Need good performance with a tighter budget?
HNBR offers excellent oil, fuel, and heat resistance, making it a cost-effective alternative to FKM for many engine parts.
✅ Advantages of HNBR:
- Resistant to engine oil, fuel, and refrigerants
- Better abrasion and tear resistance than FKM
- Lower cost for mass-market engines7
- Good aging and ozone resistance
Ideal for:
- Timing covers
- Cylinder head seals
- Water pump seals
- Valve cover gaskets
FKM vs HNBR for Engine O-Rings
Let’s simplify the choice with a comparison table:
| Property | FKM (Viton®) ✅ | HNBR ✅ |
|---|---|---|
| Max Temp Range | Up to 230°C | Up to 150°C |
| Oil/Fuel Resistance | Excellent ✅ | Excellent ✅ |
| Compression Set | Very Low ✅ | Low ✅ |
| Abrasion Resistance | Moderate ⚠️ | High ✅ |
| Cost | High ❌ | Moderate ✅ |
| Longevity in Engine Use | Excellent ✅ | Good ✅ |
Conclusion
FKM is the top O-ring material for engine applications, offering the best performance in heat, oil, and fuel resistance. HNBR is a solid alternative when cost is a concern or when used in parts with lower temperature demands.
