Need the right EPDM gasket thickness for your sealing job? Using a gasket that’s too thin or too thick can result in leaks, compression failure, or fitting issues.
EPDM rubber gaskets typically range from 1 mm to 25 mm in thickness. The ideal thickness depends on the application, flange surface, and required compression performance.
Let’s explore how to choose the right EPDM gasket thickness for different environments and sealing needs.
Standard EPDM Gasket Thicknesses
EPDM gaskets1 are available in a wide variety of thicknesses2 to suit different industrial and commercial uses. Here are the most common options:
| Thickness (mm) | Common Use Cases |
|---|---|
| 1–2 mm | Electronics, HVAC panels, lightweight enclosures |
| 3–5 mm | Plumbing gaskets, water seals, flanges |
| 6–10 mm | Vibration damping, outdoor covers, heavy seals |
| 12–25 mm | Gap filling, cushioning, industrial heavy-duty seals |
You can also order custom-cut EPDM gaskets3 in intermediate or non-standard thicknesses for precision-fit sealing applications.
Factors That Affect EPDM Gasket Thickness Selection
Choosing the right thickness involves more than just measuring a gap.
✅ 1. Flange or Groove Tolerance4

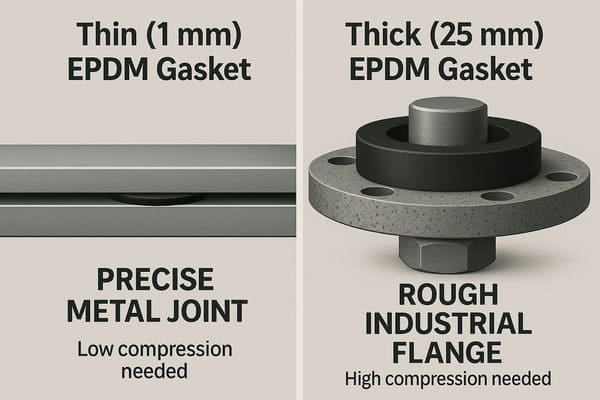

If your flange surfaces are rough or uneven, a thicker gasket (5 mm or more) may be needed to fill the gaps effectively. On smooth, machined surfaces, 2–3 mm may be enough.
✅ 2. Compression Set Requirements5
Thinner EPDM gaskets compress more easily, but can bottom out or deform under sustained pressure. Thicker gaskets allow better deflection range without permanent deformation.
✅ 3. Medium Pressure6
If your gasket is sealing against low-pressure water or air, 2–3 mm is often enough. For high-pressure applications, a reinforced or thicker EPDM material may be necessary.
✅ 4. Movement and Vibration
Where components move or vibrate, thicker or sponge-grade EPDM provides better cushioning and energy absorption.
Solid EPDM vs. Sponge EPDM Thickness Options
There are two main forms of EPDM gasket:
| Type | Typical Thickness Range | Application |
|---|---|---|
| ✅ Solid EPDM7 | 1–10 mm (standard), up to 25 mm | Fluid sealing, chemical resistance, flanges |
| ✅ Sponge EPDM8 | 3–20 mm | Enclosure doors, gap seals, vibration control |
Sponge EPDM compresses much more under load and is often used for doors, cabinets, and HVAC panels.
Can EPDM Be Layered for Extra Thickness?
Yes. In some cases, users stack multiple thinner sheets or gaskets with adhesives to achieve the desired thickness or performance. However, this can create leak paths if not sealed properly. A single-piece cut from thicker EPDM sheet is always more reliable.
Conclusion
EPDM rubber gaskets come in thicknesses ranging from 1 mm to over 25 mm. Standard choices like 3 mm or 5 mm work for most plumbing and HVAC applications, while thicker cuts are ideal for heavy-duty sealing or vibration control. Always consider the flange surface, pressure, and environment when selecting gasket thickness.
