Small gasket leaks in HVAC systems cause massive headaches—from increased energy bills to unhappy building occupants. Choosing the right gasket is critical, yet often overlooked.

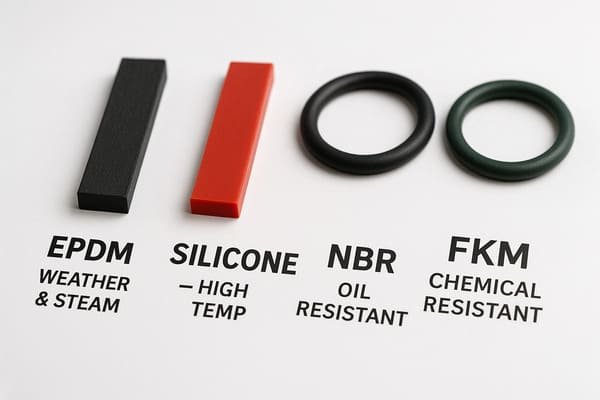

The most common materials for HVAC gaskets are EPDM, Silicone, NBR, and FKM (Viton). Each has unique benefits related to temperature, chemical resistance, and specific certifications required for HVAC applications.
Choosing the right gasket material is crucial. I'll explain each material clearly to help you make the best decision for your projects.
Is EPDM ideal for HVAC gasket applications?
Imagine your HVAC seals failing due to harsh weather conditions—something that frequently happens without proper material choice.
EPDM (Ethylene Propylene Diene Monomer) is widely used in HVAC gasket applications due to its excellent weather, ozone, and UV resistance, good temperature flexibility, and high sealing performance.
🛠️ EPDM gasket properties:
Advantages of EPDM for HVAC:
- ✅ Excellent UV and ozone resistance1
- ✅ Highly resistant to water, steam, and humidity
- ✅ Good flexibility in cold temperatures (-40°C)
- ✅ Cost-effective compared to silicone and FKM2
- ✅ Certified to EN455453 (fire safety) and UL94 HB (flame retardant)
Common EPDM4 HVAC Applications:
- Outdoor HVAC units
- Duct flange seals
- Roof-top ventilation units
- Air handling unit (AHU) door seals
| EPDM Technical Summary | Rating |
|---|---|
| Temperature Range5 | -40°C to +120°C |
| Weather Resistance6 | ★★★★★ |
| Chemical Resistance | ★★★☆☆ |
| Cost-effectiveness | ★★★★☆ |
| Certifications | EN45545, UL94 HB, RoHS |
EPDM is my go-to recommendation for HVAC contractors in Europe who frequently deal with outdoor installations exposed to harsh environments.
Is Silicone suitable for HVAC gasket use?
Incorrect gasket choices can lead to failures under extreme temperatures—silicone gaskets eliminate that risk.

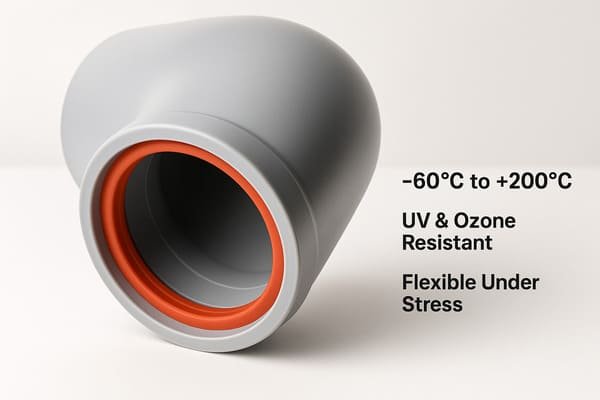

Silicone rubber excels in HVAC applications needing superior temperature resistance and flexibility. It withstands temperatures from -60°C to +200°C and offers excellent UV and ozone resistance.
🛠️ Silicone gasket properties:
Advantages of Silicone for HVAC:
- ✅ Exceptional temperature range7
- ✅ Excellent flexibility at low temperatures
- ✅ Outstanding UV and ozone resistance8
- ✅ Non-toxic, FDA approved for sensitive environments9
- ✅ UL94 V-0 certification (highest flame retardancy)
Common Silicone HVAC Applications:
- HVAC equipment in hospitals and laboratories
- High-temperature heating system seals
- Cleanroom ventilation systems
- Food-processing HVAC installations
| Silicone Technical Summary | Rating |
|---|---|
| Temperature Range | -60°C to +200°C |
| Weather Resistance | ★★★★★ |
| Chemical Resistance10 | ★★★☆☆ |
| Cost-effectiveness | ★★★☆☆ |
| Certifications | FDA, UL94 V-0, RoHS |
For HVAC systems in medical or cleanroom environments, silicone gaskets offer safety, reliability, and regulatory compliance.
When should you choose NBR for HVAC gaskets?
Facing oil or refrigerant leaks? You likely chose the wrong gasket material.

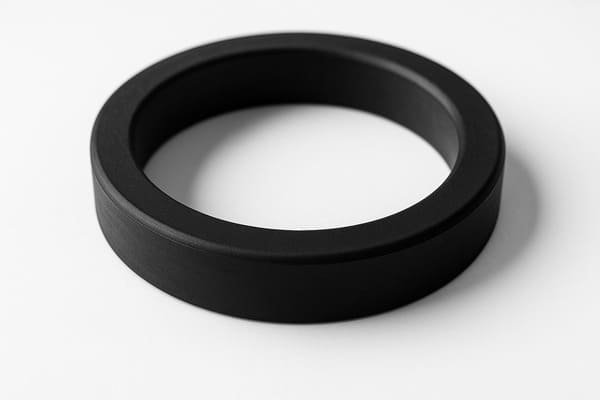

Nitrile Rubber (NBR) is ideal for HVAC applications involving oil, fuels, or refrigerants due to its excellent resistance to petroleum-based substances.
🛠️ NBR gasket properties:
Advantages of NBR for HVAC:
- ✅ Outstanding resistance to oils, fuels, and refrigerants
- ✅ Good abrasion resistance and durability
- ✅ Effective sealing at moderate temperatures
- ✅ UL94 HB certification available
Common NBR HVAC Applications:
- Refrigeration systems
- Oil-lubricated HVAC compressors11
- HVAC valves and fittings
- Chemical or oil-exposed HVAC installations
| NBR Technical Summary | Rating |
|---|---|
| Temperature Range | -30°C to +100°C |
| Weather Resistance | ★★★☆☆ |
| Chemical Resistance | ★★★★★ (oil, fuel) |
| Cost-effectiveness | ★★★★★ |
| Certifications | UL94 HB, RoHS |
NBR gaskets12 have solved oil leakage issues for many HVAC equipment manufacturers, reducing their maintenance and improving customer satisfaction.
Is FKM (Viton) necessary in HVAC gasket applications?
When standard materials fail due to harsh chemicals or high temperatures, it's time to consider FKM.
FKM (Viton) rubber is used in HVAC when conditions involve extreme heat or aggressive chemicals. It withstands temperatures up to 250°C and offers superior chemical compatibility.
🛠️ FKM gasket properties:
Advantages of FKM for HVAC:
- ✅ Exceptional chemical resistance (solvents, acids)13
- ✅ High temperature capability14
- ✅ Excellent ozone, UV, and weather resistance
- ✅ UL94 V-0 flame retardancy certification15
Common FKM HVAC Applications:
- Chemical processing HVAC units
- Exhaust ventilation systems
- HVAC units in industrial plants
- High-temperature ductwork sealing
| FKM Technical Summary | Rating |
|---|---|
| Temperature Range | -20°C to +250°C |
| Weather Resistance | ★★★★★ |
| Chemical Resistance | ★★★★★ |
| Cost-effectiveness | ★★☆☆☆ |
| Certifications | UL94 V-0, REACH |
FKM gaskets are highly specialized but are indispensable when standard materials can’t withstand severe operating conditions.
Summary Table of Common HVAC Gasket Materials
| Material | Temp Range | Weather Resistance | Chemical Resistance | Key Certifications | Typical Applications |
|---|---|---|---|---|---|
| EPDM | -40°C to +120°C | Excellent | Water, Steam, Mild Chemicals | EN45545, UL94 HB, RoHS | Duct flanges, AHU doors |
| Silicone | -60°C to +200°C | Excellent | Moderate Chemicals | FDA, UL94 V-0, RoHS | Medical, Cleanroom HVAC |
| NBR | -30°C to +100°C | Fair | Oils, Fuels, Refrigerants | UL94 HB, RoHS | Refrigeration, Compressors, Valves |
| FKM | -20°C to +250°C | Excellent | Solvents, Acids, Extreme Temps | UL94 V-0, REACH | Chemical processing, Exhaust systems |
Conclusion
Understanding EPDM, Silicone, NBR, and FKM gasket materials is crucial. Each material has unique strengths, certifications, and suitable applications—select carefully to ensure HVAC system reliability.
