Choosing between an O-ring and a gasket might seem simple—but using the wrong one could lead to leaks, system failure, or expensive downtime.
The main difference is that O-rings are used for dynamic or radial seals in grooves, while gaskets are flat seals used to fill the space between two surfaces to prevent leakage.
If you’re unsure which to use for your sealing application, keep reading to understand their functions and selection criteria.
What Is an O-Ring?
Still confused about what an O-ring actually does?
An O-ring is a round, torus-shaped elastomer seal that sits inside a groove and gets compressed between two surfaces to block fluid or gas leakage.
✅ Key Features of O-Rings:
- Made from rubber materials like NBR, EPDM, Viton, Silicone
- Seals fluids or gases under pressure
- Used in hydraulic cylinders, valves, pumps, and pipe connections
- Works under both static and dynamic conditions
- Installed into machined grooves
O-rings1 create a 360-degree seal and are commonly used in equipment where components move or rotate.
What Is a Gasket?
Not sure how gasket2s differ from O-rings?
A gasket is a flat sealing material placed between two flanges or mating surfaces to prevent leakage when the parts are bolted together.
✅ Common Gasket Features:
- Made from rubber, foam, cork, PTFE, or metal
- Used in flat, static sealing conditions
- Common in flanged pipes3, heat exchangers4, and engine covers5
- Cut to shape—round, square, or custom profiles
- Compresses under bolt load to create a barrier
Unlike O-rings, gaskets don’t require grooves and are usually held in place by surface pressure.

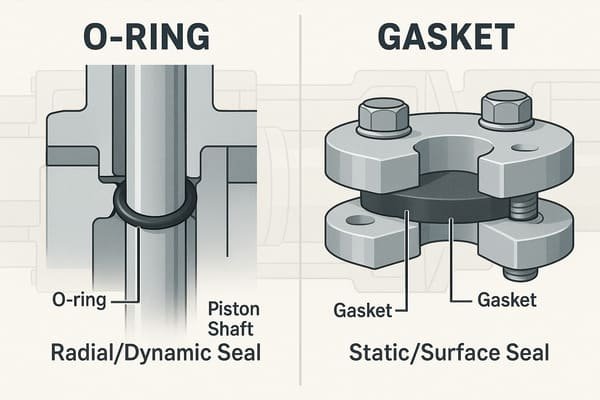

What Are the Key Differences Between O-Rings and Gaskets?
Confused by when to use each?
O-rings provide radial or axial sealing in grooves with circular cross-sections, while gaskets seal flat mating surfaces under compression.
| Feature | O-Ring ✅ | Gasket ✅ |
|---|---|---|
| Shape | Circular cross-section | Flat cut shape (customizable)6 |
| Use Type | Dynamic or static sealing7 | Static sealing only |
| Installation | Sits in a groove | Placed between two surfaces |
| Movement Resistance | Good for pistons/shafts8 | Not suitable for motion |
| Common Applications | Valves, pumps, cylinders | Flanges, engine covers |
| Compression Type | Axial or radial | Surface-to-surface |
When Should You Use an O-Ring Instead of a Gasket?
Working with pressure or moving parts?
Choose an O-ring when you need a compact, groove-mounted seal for high-pressure, hydraulic, or rotating equipment.

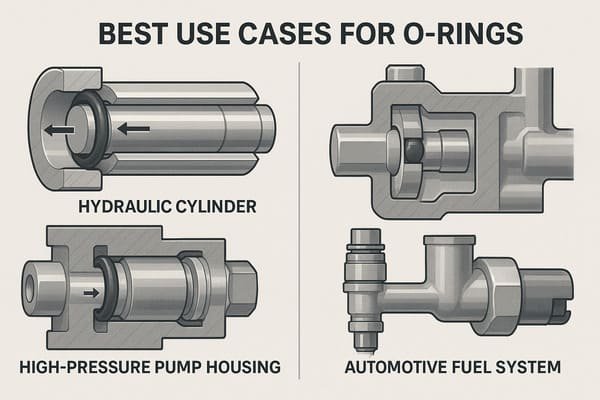

Best Use Cases for O-Rings:
- 🛠️ Hydraulic and pneumatic cylinders
- 🔁 Rotary shafts and piston seals
- ⚙️ High-pressure pump housings
- 🚗 Automotive fuel systems and brake assemblies
O-rings handle both axial and radial forces and are better suited for dynamic or repetitive sealing needs.
Can O-Rings Replace Gaskets?
Thinking of switching to O-rings?
O-rings can replace gaskets only if the design allows for a groove and axial compression. Flat gaskets are still necessary for wide, irregular surfaces without groove design.
⚠️ Consider These Factors:
- Groove must be designed if switching to an O-ring
- Gasket area may be too large for O-ring sealing
- High bolt load may damage standard O-rings
- Temperature or chemical compatibility must match
In general, don’t replace a gasket with an O-ring unless the housing is designed for one.
Conclusion
O-rings and gaskets serve similar sealing purposes, but they’re used in completely different ways. O-rings are great for pressure and motion. Gaskets are better for flat surface sealing. Choosing the right one depends on shape, installation method, movement, and environmental conditions.
