Description

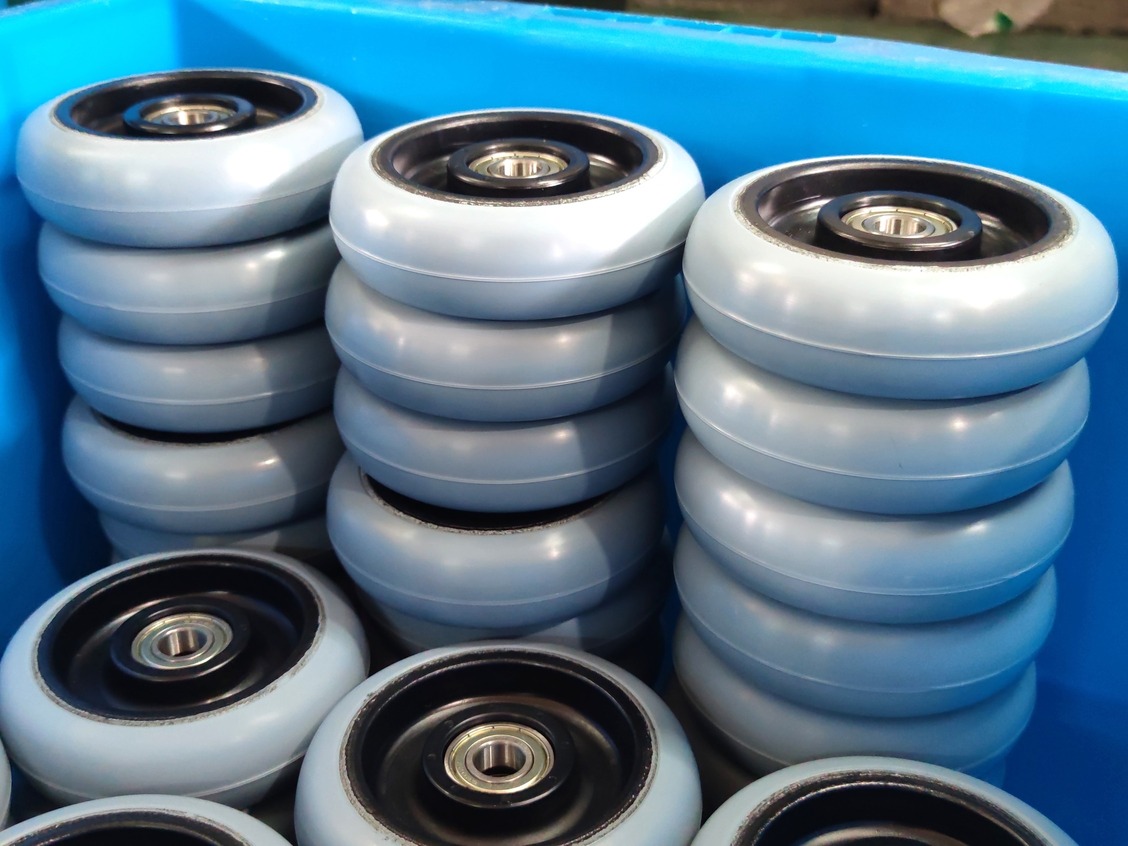

Solid Elastic Rubber Wheel 125x36mm for Electric Forklifts & Industrial Carts
This solid elastic rubber wheel is engineered for use on electric forklifts, AGVs, and industrial carts. It features a high-quality elastic rubber tread with a hardness of 70° Shore A, bonded to a durable PA6 nylon hub. The wheel offers excellent load capacity, low rolling resistance, and superior shock absorption, making it ideal for demanding industrial and warehouse environments. Its non-marking blue tread protects sensitive floors, while the hub and thread guard provide stability and resistance to debris.
Technical Specifications
| Parameter | Value | Remark |
|---|---|---|
| Wheel Size | 125 x 36 mm | Standard industrial profile |
| Tread Material | Elastic Rubber | Hardness 70° Shore A |
| Tread Color | Blue (RAL 5010) | Non-marking, easy identification |
| Hub Material | PA6 Nylon | Black (RAL 9004) |
| Bore Diameter | 10 mm | Standard fitment |
| Hub Width | 46 mm | Ensures stability under load |
| Thread Guard | PA6 Nylon | Surface Ra 3.15, debris protection |
| Bearing | Chrome Steel | Sealed, temperature -30°C to +80°C |
| Operating Temperature | -30°C to +80°C | For cold storage and heated environments |
| Weight | Hub: 144.3g, Thread Guard: 8.3g, Bearing: 44g | Lightweight, efficient design |
Main Features
- Elastic rubber tread provides low rolling resistance and excellent traction.
- Robust PA6 nylon hub ensures high strength and low weight.
- Non-marking blue tread suitable for sensitive indoor floors.
- Wide operating temperature range supports use in cold storage and hot warehouses.
- Sealed chrome steel bearings for smooth, maintenance-free operation.
- Thread guard design protects the wheel from debris and increases service life.
Applications
- Electric forklifts
- Industrial trolleys and carts
- Automated guided vehicles (AGVs)
- Warehouse and logistics equipment
Advantages
- Long service life and minimal downtime
- High load capacity and operational stability
- Puncture-proof and maintenance-free design
- Customizable for color, hub material, and size
- Meets international quality standards for export
