Small gasket leaks in HVAC systems cause massive headaches—from increased energy bills to unhappy building occupants. Choosing the right gasket is critical, yet often overlooked.
A gasket in HVAC is a sealing component, typically made of rubber or foam, placed between metal surfaces to prevent air, water, or dust leakage in heating, ventilation, and air conditioning systems.
Many professionals underestimate gaskets, but a quality seal ensures HVAC efficiency, safety, and long-term reliability. Let’s dive deeper into why gaskets are vital and how to choose the best ones for your applications.
Why are gaskets important in HVAC systems?
Silent leaks might go unnoticed initially, but eventually, they can disrupt comfort, efficiency, and even safety.
HVAC gaskets provide airtight and watertight seals, reduce noise and vibrations, maintain indoor air quality, and prevent costly energy loss.
Key Roles of HVAC Gaskets
- Sealing: They seal opening panels, flaps, doors, duct joints, and flanges to prevent air leaks and energy loss.
- Vibration Reduction1: Gaskets reduce the transmission of motor or fan vibrations, minimizing noise and wear on components.
- Thermal Expansion Accommodation: They allow for thermal expansion and contraction within the HVAC system without compromising the seal.
- Energy Efficiency2: By preventing leaks, gaskets help reduce energy consumption, lowering heating and cooling costs.
- Improved Indoor Air Quality3: Effective sealing blocks contaminants and pollutants from entering the airflow, promoting healthier indoor environments.
- Noise Dampening: Some gasket materials also act as sound dampeners, reducing noise from airflow and mechanical vibrations.
- System Longevity: Proper sealing protects components from moisture, pressure fluctuations, and corrosive elements, extending equipment life.
A poor-quality gasket once caused major issues for a French HVAC contractor. They switched to our EPDM gasket4 certified to EN45545 (fire and smoke safety standard) and solved their leakage and compliance problems immediately.
What gasket materials are best for HVAC?
Choosing incorrect gasket materials can mean frequent replacement and unexpected failures.

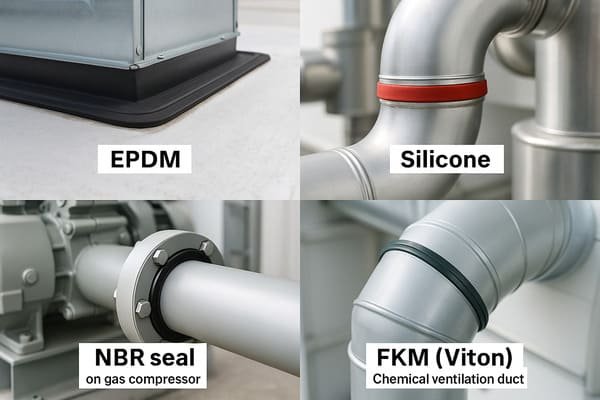

EPDM, silicone, NBR, and FKM are popular HVAC gasket materials, each with distinct temperature ranges and chemical resistance.

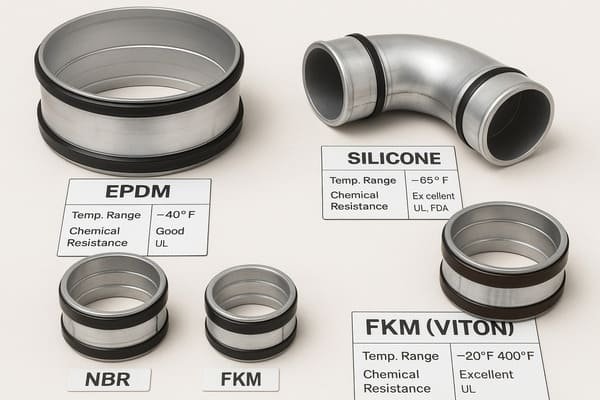

HVAC Gasket Material Comparison
| Material | Temperature Range | Chemical Resistance | Weather Resistance | Certifications |
|---|---|---|---|---|
| EPDM5 | -40°C to +120°C | Excellent (water, steam) | Excellent | EN45545, UL94 HB, RoHS |
| Silicone6 | -60°C to +200°C | Good (ozone, UV, heat) | Excellent | FDA, UL94 V-0, RoHS |
| NBR | -30°C to +100°C | Excellent (oil, fuel) | Fair | UL94 HB, RoHS |
| FKM (Viton)7 | -20°C to +250°C | Excellent (chemicals) | Excellent | UL94 V-0, REACH |
🛠️ Tip: For HVAC systems in public transport or sensitive buildings like hospitals, our EPDM and silicone gaskets certified to EN45545 and UL94 fire safety standards are highly recommended.
Where are HVAC gaskets typically used?
Not all HVAC components use the same gasket type. Misuse can cause sealing failures.
Common gasket applications in HVAC include duct flanges, filter covers, access doors, air handling units, and valve connections.
HVAC Component Gasket Selection
| HVAC Component | Recommended Gasket Type | Typical Certifications |
|---|---|---|
| Duct Flanges | Flat EPDM/NBR | EN45545, UL94 HB |
| Air Handling Units | Custom Molded EPDM/Silicone | UL94 V-0, RoHS |
| Filter Covers | Foam EPDM/Silicone | FDA, RoHS |
| Dampers & Valves | EPDM Profile, NBR O-rings | UL94 HB, REACH |
| Access Panels | Closed-cell EPDM Foam | UL94 HB, RoHS |
One Dutch client required silicone gaskets8 meeting FDA and UL94 V-0 standards9 for HVAC units installed in hospitals—our specialized solution met their rigorous criteria perfectly.
What problems occur with poor gasket selection?
Choosing a low-cost gasket might seem appealing but can cause expensive long-term issues.
Incorrect gasket selection leads to air leaks, higher energy usage, system downtime, mold growth, and frequent replacements.
Common Gasket Issues in HVAC
- ❌ Leaks causing uneven indoor temperatures
- ❌ Increased humidity causing mold problems
- ❌ High operational energy costs10
- ❌ System downtime and costly maintenance
I’ve seen numerous European HVAC contractors struggle with poorly selected gaskets. By switching to our certified materials11 (RoHS, REACH, and UL94), they dramatically improved their system reliability12.
How to select the right HVAC gasket?
Every HVAC system is unique—your gasket choice should reflect that.
Key selection factors include gasket material, temperature range, chemical exposure, weather resistance, and industry-specific certifications.
Essential Gasket Selection Checklist
| Selection Criteria | Questions for Decision-making |
|---|---|
| Material | What chemical exposures are present? |
| Temperature | Extreme heat or cold expected? |
| Compression Set | Need for tight sealing or cushioning? |
| Certifications | Required UL94, EN45545, FDA, RoHS, or REACH? |
| Weather Exposure | Outdoor UV or ozone exposure? |
For a recent hospital HVAC system in Germany, our EPDM foam gaskets13 with UL94 V-0 fire retardancy14 and RoHS certification15 proved crucial. It resolved leakage issues and passed stringent safety inspections.
Conclusion
Choosing the right HVAC gasket ensures system efficiency, safety, and reliability. Always prioritize certified gasket solutions to avoid costly mistakes.
