What Material to Use for HVAC Gasket?

Poor gasket selection can cause HVAC systems to fail, leading to costly energy loss and frequent repairs. Are you confident your gasket material choice is right?

For HVAC applications, EPDM rubber is typically the best gasket material. It offers excellent resistance to weather, temperature extremes, and ozone, ensuring reliable sealing performance in demanding environments.

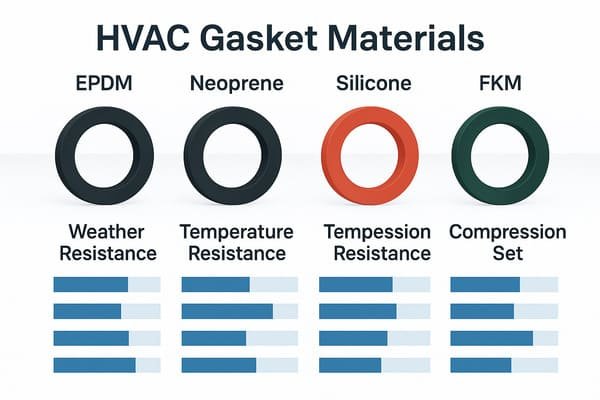

Picking the right gasket material is vital to your HVAC system's longevity and efficiency. Let’s explore why EPDM stands out and when silicone, nitrile, or FKM might be the better choice.

Why choose EPDM rubber for HVAC gaskets?

Incorrect gasket choices can cause system breakdowns and increased maintenance costs. Could EPDM rubber solve your sealing challenges?

EPDM rubber is favored due to its excellent temperature range (-50°C to 150°C), high durability, UV and ozone resistance, and compatibility with various HVAC applications.

EPDM’s benefits:

EPDM (Ethylene Propylene Diene Monomer)¹ is a top choice for outdoor HVAC systems. Its performance in sunlight, humidity, and temperature shifts is stable over time. It resists aging, cracking, and hardening, which helps ensure airtight sealing and energy savings.

Feature	Advantage of EPDM
Temperature resistance2	Maintains elasticity from -50°C to 150°C ✅
Weather & ozone resistance	Withstands continuous outdoor exposure ✅
Chemical resistance	Good for water, steam, mild acids ✅
Durability3	Long lifespan with minimal maintenance ✅
Cost efficiency	Affordable and reliable ✅

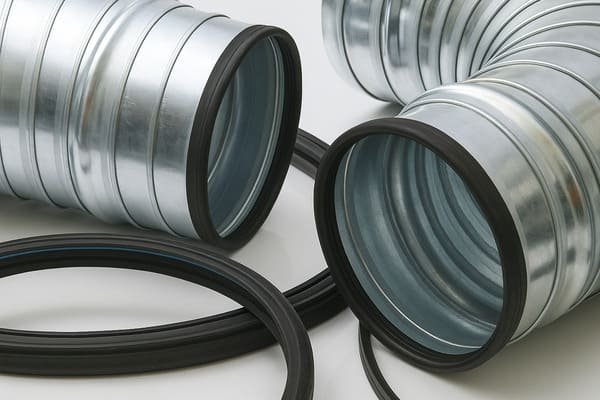

In my projects, I’ve seen EPDM last for years without degrading, especially in duct flange seals and rooftop HVAC units exposed to all seasons.

When should you consider silicone gaskets instead?

Choosing the wrong material in high-temperature scenarios can lead to premature gasket failure. Is silicone a better fit for your situation?

Silicone gaskets are ideal for very high-temperature HVAC applications (up to 230°C) and where flexibility and chemical resistance to strong acids or solvents are crucial.

Silicone suitability:

Silicone offers unmatched thermal resistance⁴. It keeps its flexibility and shape in conditions where EPDM or nitrile might crack or soften. This makes it a smart choice for HVAC heat recovery systems⁵, sterilization ducts, or electronic enclosures.

Property	Silicone	EPDM
Max Temperature Range	-60°C to 230°C ✅	-50°C to 150°C
Flexibility	Excellent ✅	Good
Chemical Resistance	Excellent ✅	Good
UV/Ozone Resistance	Excellent ✅	Excellent ✅
Cost	Higher	Lower ✅

Silicone’s only drawback is cost. For critical projects, though, I’ve chosen silicone to prevent heat-induced failures and extend service life.

Are nitrile (NBR) gaskets suitable for HVAC?

Oils and refrigerants can eat away at the wrong material. Is nitrile the better solution for your HVAC needs?

Nitrile (NBR) gaskets are best suited for HVAC applications involving oils, fuels, or refrigerants due to their superior resistance to petroleum-based substances.

Nitrile gasket applications:

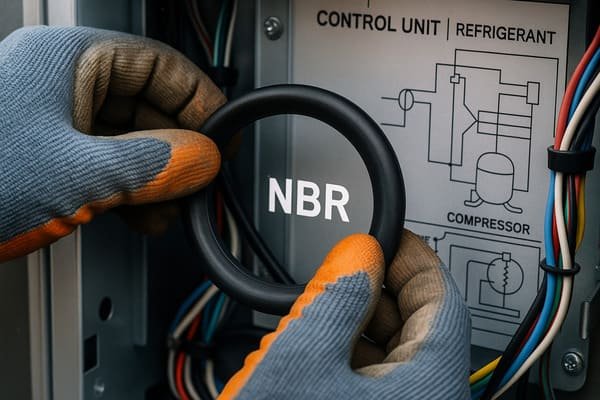

Nitrile rubber⁶ performs well in HVAC systems with oil-lubricated compressors⁷ or refrigerant circuits. It’s not ideal for outdoor or high-heat conditions, but it offers solid sealing in greasy environments⁸ where EPDM fails.

Feature	Nitrile (NBR) ✅	EPDM	Silicone
Oil Resistance	Excellent ✅	Poor	Fair
Temp Range	-40°C to 120°C ✅	-50°C to 150°C	-60°C to 230°C ✅
Flexibility	Good	Good	Excellent ✅
UV/Ozone Resistance	Poor	Excellent ✅	Excellent ✅

I use nitrile in control boxes and enclosed mechanical areas. It’s affordable, reliable with oils, and easy to work with.

When is FKM (Viton®) the best choice for HVAC gaskets?

Tough industrial HVAC environments demand more than standard rubber. Is FKM the ultimate high-performance solution?

FKM, commonly known as Viton®, is the top choice for HVAC systems exposed to aggressive chemicals, high pressures, and continuous high heat (up to 250°C).

FKM’s industrial advantage:

FKM rubber⁹ provides the best resistance to chemicals, heat, and compression set among all common HVAC gasket materials. It’s often used in cleanroom HVAC¹⁰, lab ventilation, or chemical process environments where EPDM or NBR wouldn’t survive.

Why I choose FKM for critical projects:

• Exceptional resistance to acids, fuels, solvents.
• Minimal degradation under prolonged heat exposure.
• Reliable seal even under vacuum or pressure variations.

Feature	FKM (Viton®) ✅	EPDM	Silicone	NBR
Temp Range	-20°C to 250°C ✅	-50°C to 150°C	-60°C to 230°C	-40°C to 120°C
Chemical Resistance	Outstanding ✅	Moderate	Good	Poor to Moderate
UV/Ozone Resistance	Excellent ✅	Excellent ✅	Excellent ✅	Poor
Compression Set Resistance	Very low ✅	Moderate	Low	Moderate
Cost	High	Low ✅	Medium	Medium

FKM is expensive, but when failure isn’t an option, I trust it. For critical exhaust vents, cleanroom HVAC systems, and VOC-prone areas, nothing beats FKM.

Conclusion

Choose EPDM for general HVAC, silicone for extreme heat, NBR for oily systems, and FKM for harsh industrial conditions. Match your material to the job for long-term sealing success.
